Tracked Rail Excavators

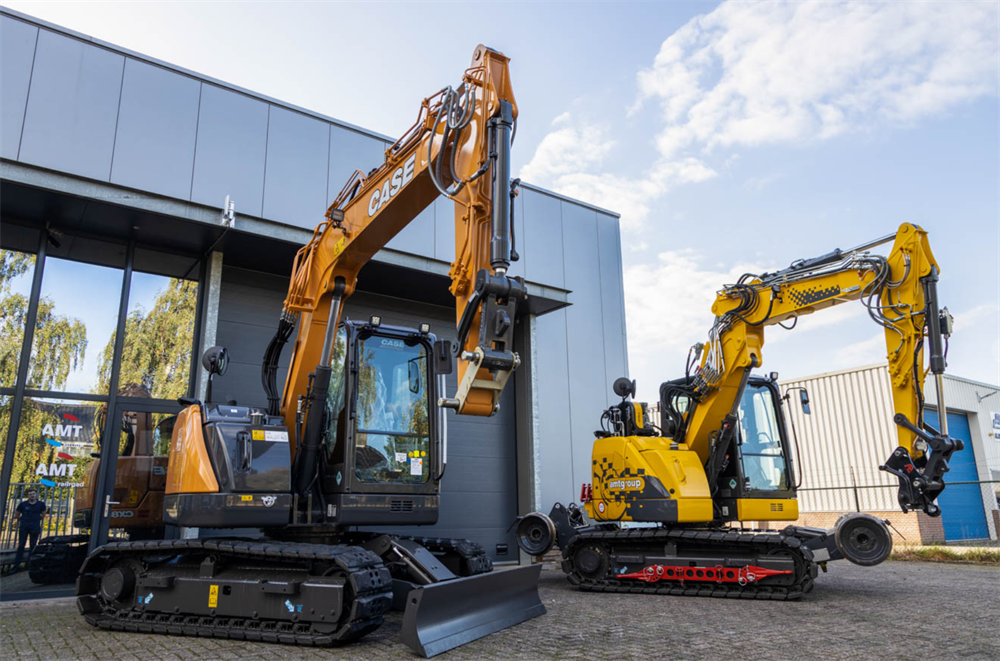

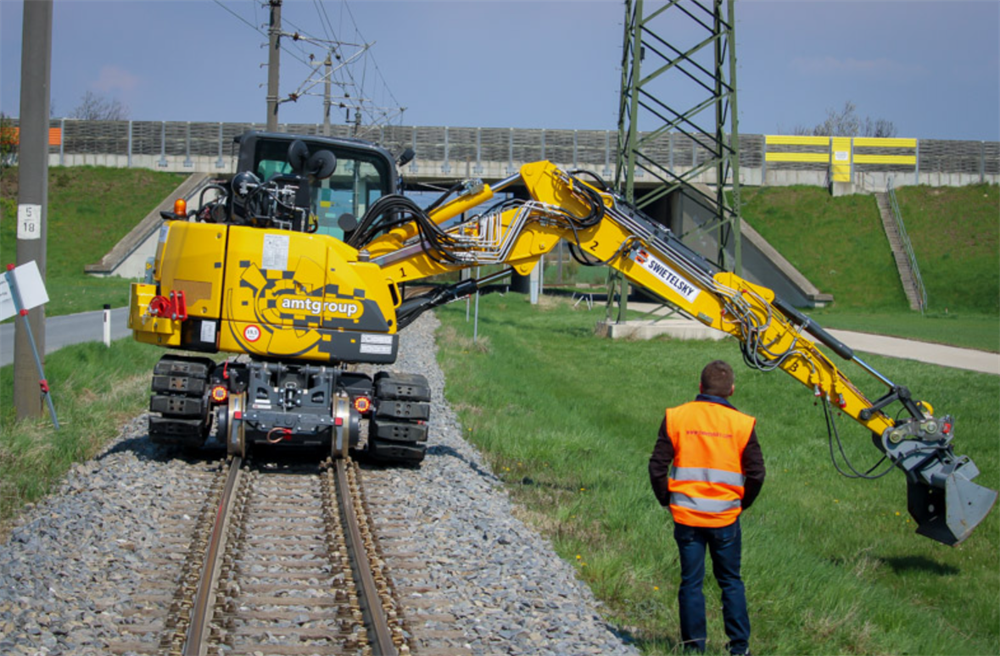

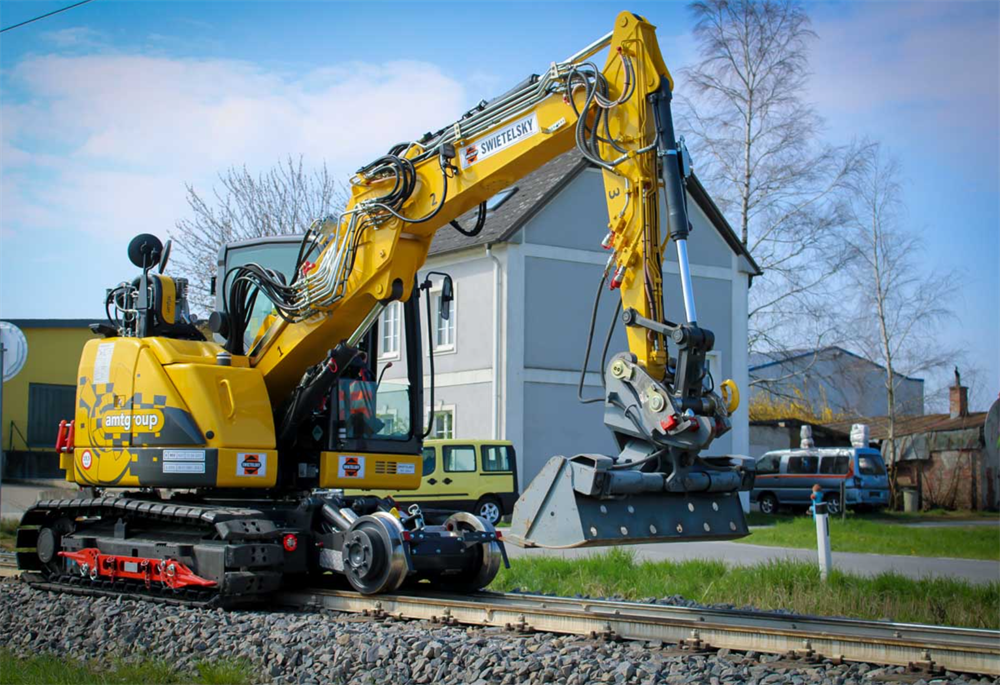

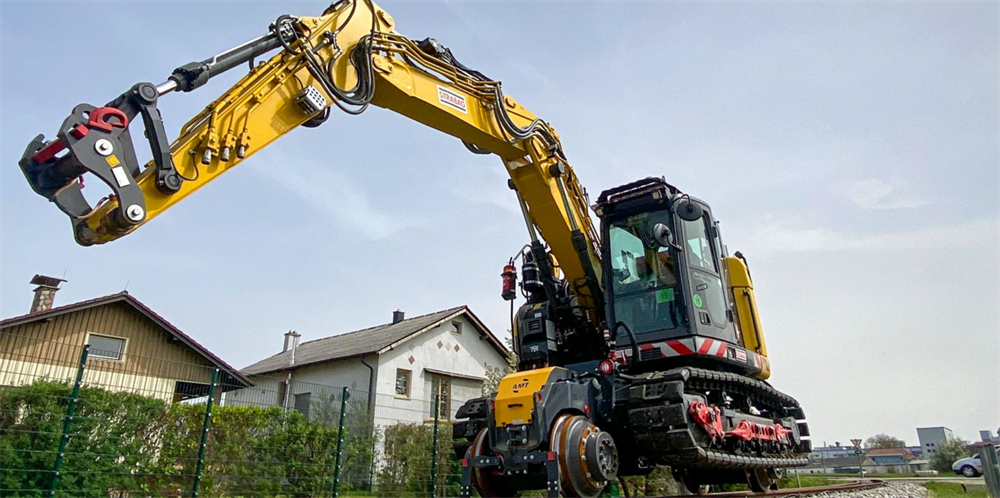

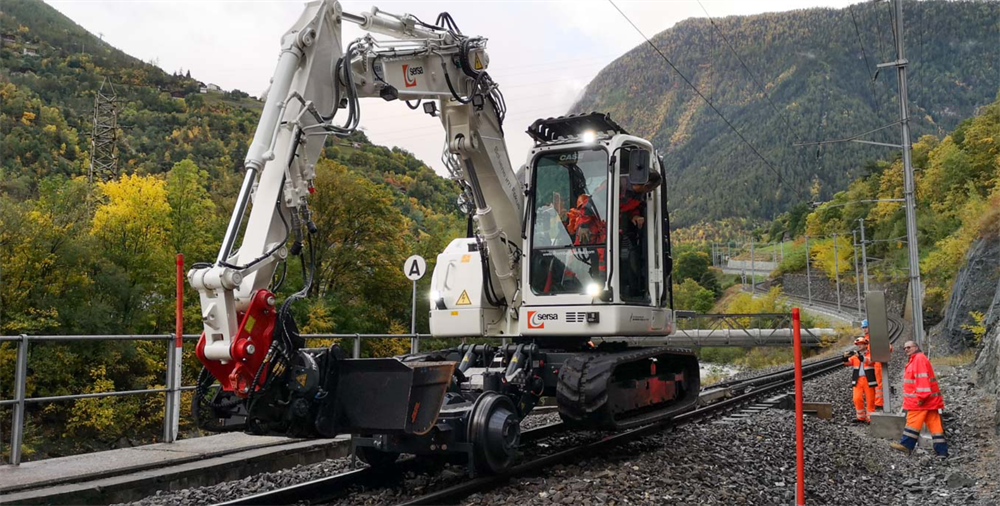

The 85RR (10 tons) and 145RR (20 tons) are versatile crawler excavators equipped with hydraulically driven rail wheels, adaptable for metre gauge, standard gauge, and tram tracks with a simple wheel change. Their compact design and short tail swing allow operation in tight spaces without compromising stability.
The hydraulic four-wheel drive provides excellent grip during acceleration and braking, with speeds up to 20 km/h and slopes of 60‰ or more. The front pendulum axle can be controlled automatically or manually to ensure maximum stability in all conditions.
All rail undercarriage functions are easily managed via an integrated display showing the status of rail wheels, the RCI system, and optional cameras. An internet module allows remote service, software updates, and monitoring from anywhere. The undercarriage is built according to EN 15746 and assembled in compliance with national regulations, ensuring high reliability and long service intervals.
Benefits for your operation
- Quick adjustment between different track types
- Stable and safe operation in tight or sloped areas
- Easy control and full overview via integrated display
- Remote access for service and updates
- Proven technology with long service intervals
Options
-
Emergency descent system for gradients up to 80 ‰
-
Specialized drive system for inclines up to 250 ‰
-
Hydraulic outriggers
-
Centralized lubrication system
-
Air or hydraulic trailer braking systems
-
Elevated work platforms
-
Quick-change systems, tilt-rotators, and specialized attachments
Technical Specifications
-
Unified control panel for all onboard systems
-
Integrated Rated Capacity Indicator (RCI)
-
Integrated height and slew safety systems
-
Short tail swing radius < 1,570 mm
-
All hydraulic cylinders feature position monitoring
-

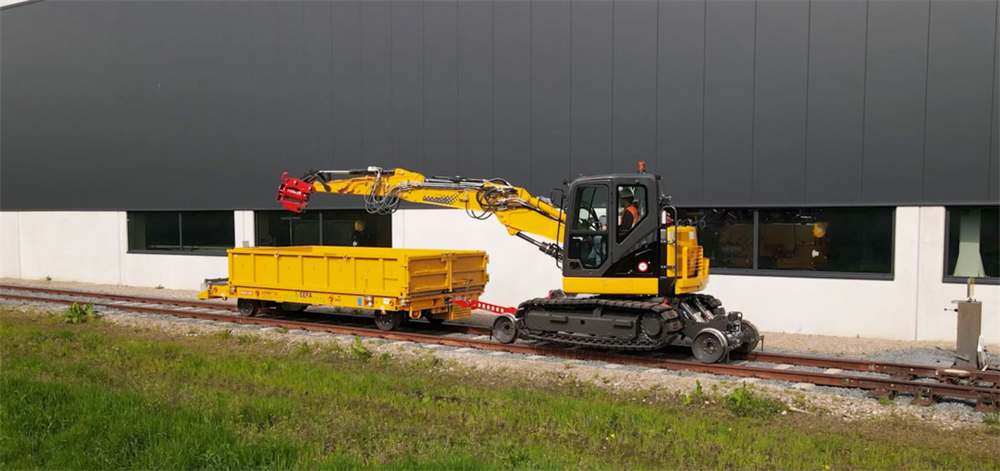

Front and rear trailer linkages (Rockinger)
-
Automatic track lighting and adjustable work lights
-
Passenger seating with integrated emergency controls
-
Comprehensive safety package
-
Manual emergency pump for profile clearance
-
660 Hz air horn and strobe lights
-
Gradients up to 60 ‰ and curve radii down to 50 meters
-

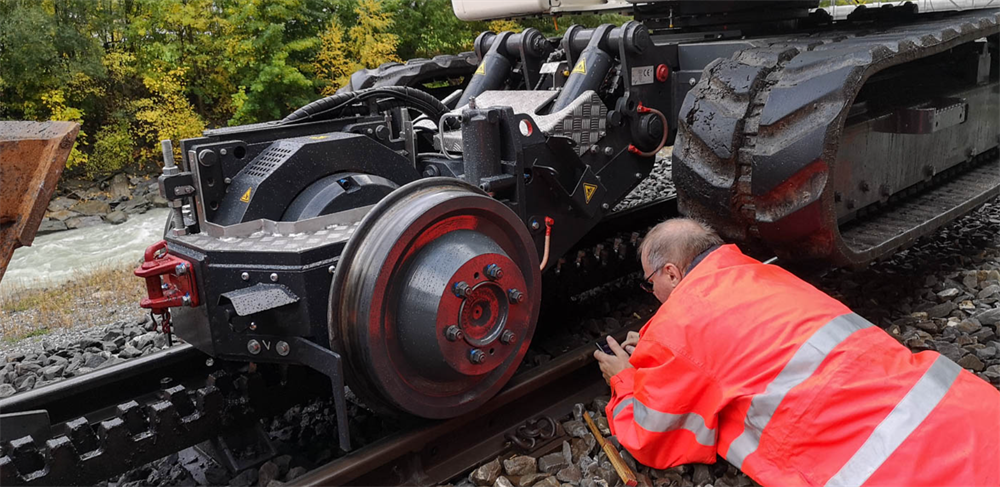

Quick-change system for meter, standard, and tram gauges
