Cathodic Protection Cable HMWPE AWG 8 (10 mm²)
HMWPE cable is electrically connected (directly or indirectly) to the negative output terminal of a cathodic protection power supply.
This includes bond cables to a cathodically protected structure.
CP Cable is used as direct earth burial DC feeder cable in cathodic protection systems.

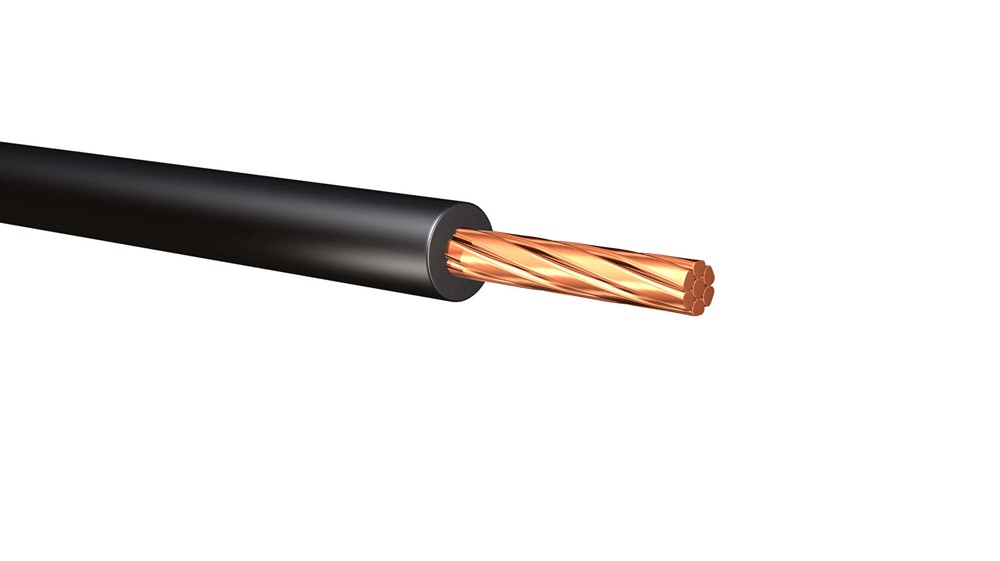

Cable Construction
- Conductor Stranded Annealed Copper (IEC/EN 60228, Class 2)
- Insulation High Molecular Weight Polyethylene (Black) Acc. to ASTM D1248 Type 3, Class C, Category 5, IEC 60502, ST7
- Reference Standards 17-SAMSS-017
Technical Properties (20°C)
- Operating Voltage 0.6/1 kV
- Test Voltage 3.5 kV
- Temperature Range Operation: -30°C...+90°C, Installation: -5°C...+70°C
- Conductor Resistance IEC/EN 60228
- Min. Bending Radius 8 x Cable Diameter
